Loyal Centrifugal Monoblock Water Pump Single Phase 210V-0.5HP-0.37kW-LDM-07HH
Loyal Centrifugal Monoblock Water Pump Single Phase 210V-0.5HP-0.37kW-LDM-07HH
Availability:In stock
SKU
Loyal-LDM-07HH
BrandLoyal
Brand: Loyal.
Product SKU: LDM-07HH.
Product Name: Centrifugal Monoblock Water Pump Single Phase 210V.
Power: 0.37kW.
Speed: 2880 RPM.
Oulet/Pipe Size: 25x25mm.
Color: Green.
Warranty: 1 Year.
Country Of Origin: India.

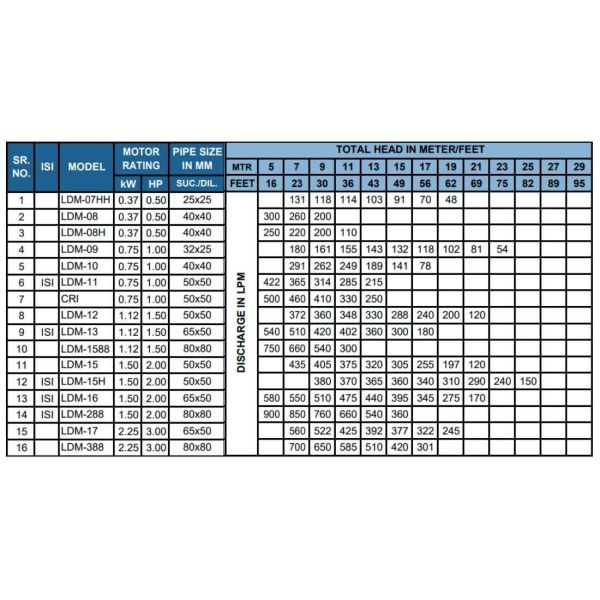

Specifications:
- Head Range: 7 to 19 Meter / 23 to 62 Feet.
- Discharge Range: 131 to 48 LPM.
- Motor Rating in 0.5HP in Single Phase - 230V, 50Hz, AC Supply.
- Voltage Range: 150V to 240V (Single Phase).
Application:
- Domestic Water Supply, Fountains, Garden.
- Industrial, Agriculture, Solar Pumping System.
Features:
- Design for a wide voltage range.
- Design for Air-Cooled Application.
- Manufactured using a much-sophisticated control process to ensure reliability & long life of the pump.
- It lightweight & easy to install.
- Rotors Are Dynamically Balance To Minimize Noise & Vibration.
Material Of Construction:
- Motor Body: Cast Iron FG 200 Grade, Impeller: Cast iron FG 200.
- Motor Shaft: Stainless Steel AISI 410 Pump, Volute: Cast iron FG 200.
- Casting Part: Cast Iron FG 200 Grade, Ball Bearing: HCH.
- Stamping: Silicon Steel, Copper: EC Grade 99.9 Percent.
Product SKU: LDM-07HH.
Product Name: Centrifugal Monoblock Water Pump Single Phase 210V.
Power: 0.37kW.
Speed: 2880 RPM.
Oulet/Pipe Size: 25x25mm.
Color: Green.
Warranty: 1 Year.
Country Of Origin: India.
Specifications:
- Head Range: 7 to 19 Meter / 23 to 62 Feet.
- Discharge Range: 131 to 48 LPM.
- Motor Rating in 0.5HP in Single Phase - 230V, 50Hz, AC Supply.
- Voltage Range: 150V to 240V (Single Phase).
Application:
- Domestic Water Supply, Fountains, Garden.
- Industrial, Agriculture, Solar Pumping System.
Features:
- Design for a wide voltage range.
- Design for Air-Cooled Application.
- Manufactured using a much-sophisticated control process to ensure reliability & long life of the pump.
- It lightweight & easy to install.
- Rotors Are Dynamically Balance To Minimize Noise & Vibration.
Material Of Construction:
- Motor Body: Cast Iron FG 200 Grade, Impeller: Cast iron FG 200.
- Motor Shaft: Stainless Steel AISI 410 Pump, Volute: Cast iron FG 200.
- Casting Part: Cast Iron FG 200 Grade, Ball Bearing: HCH.
- Stamping: Silicon Steel, Copper: EC Grade 99.9 Percent.
